   SYNCHRONOUS THREE COLOUR STELLAR PHOTOMETRY AT THE
	    CATANIA ASTROPHYSICAL OBSERVATORY


	     S. CRISTALDI and L. PATERNO
 Astrophysical Observatory of Catania, Italy


		     SUMMARY

A synchronous three colour stellar photometer using a single
photomultiplier has been constructed at Catania. In this communication
the characteristics and the efficiency of this photometer are briefly
described. At present the instrument is used for simultaneous UBV
photometry of flare stars. A graph of simultaneous measurements in the
UBV system of a flare of EV Lac is shown. A more detailed description of
the instrument had been published elsewhere (Cristaldi and Paterno 1968).


		    INTRODUCTION

During the last few years various astronomers have emphasized the
importance of simultaneous observations in different colours in stellar
photometry. Besides, multicolour and simultaneous automatic photometry
is indispensable in the study of fast phenomena, in general, and of
stellar flares in particular. Finally, the use of this kind of
photometry makes the observer's work easier and permits a uniform
presentation of the data to equipments for digital measurements. For
these reasons we constructed a synchronous photometer which executes
simultaneous measurements within the UBV system. Unlike other
multichannel photometers it uses only one photomultiplier. Fig. 1 shows
the block diagram of the apparatus.
The light beam from the telescope, after having crossed the focal-plane
diaphragm D is choppered by a filter-carrying disc, rotating at 900
revs. per minute. The disc has three round windows 120 deg apart, in which
there are three filters: one UG1 (1 mm), one BG12 (1 mm) + GG13 (2 mm)
and one OG4 (2 mm). The photomultiplier is of type EMI 6256 S.

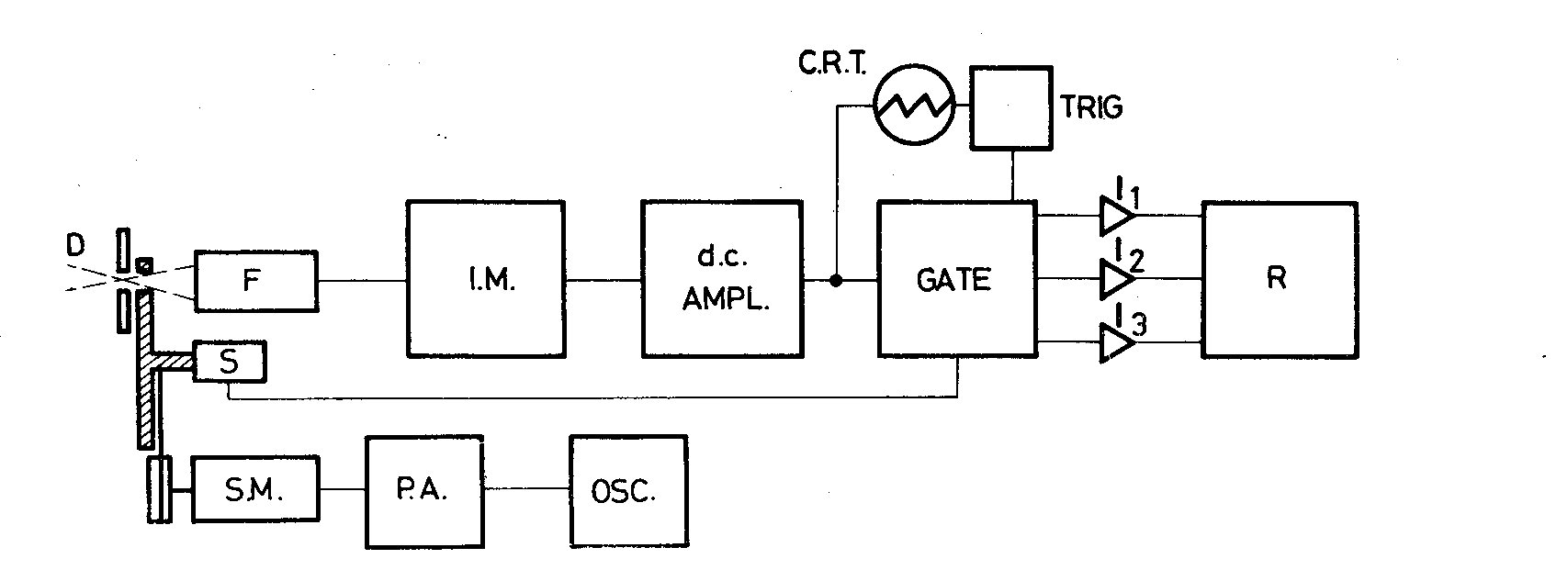

    Fig. 1. Block diagram of the photometer.

The output of the photomulitiplier is connected by means of an impedance
matcher (I.M.) to a d. c. amplifier which branches into two outputs; one
is connected to an oscilloscope (CRT) for monitoring signals, the other
is connected to a gate which acts in synchronism with three filters
through the transducer S. The signals obtained through a given filter
always exit through the same gate channel.
In our case we have three channels, the output signals of which are the
UBV signals of our system. Each output gate is connected to an integrator
circuit (I_1, I_2, I_3) whose output is measured in one of the three channels
of a recording potentiometer (R) which records every six seconds.
Regularity in filter rotation and therefore in the synchronous signals for
the gate is assured by a stepping motor (SM), powered by an amplifier (PA) and
a regulating oscillator (OSC).


	    OPTICS OF THE PHOTOMETER

The optical part of the photometer is shown in Fig. 2. The focal-plane
diaphragm D consists of a slide with three holes 1, 2, 3 mm in diameter.
The field lens is of fused quartz: diameter 20 mm and focus 70 mm.
The lens is located approximately 70 mm from the photocathode of the
photomultiplier (F), so that with a f/10 reflector the diameter of the
luminous disc which is formed on it is approximately 7 mm in size. The
rotating disc with the three filters is located between the field lens
and the photocathode.
Two small optical devices permit monitoring, respectively the pointing
of the instrument and the inserted filter, if one desires to make continuous
measurements using still filters.

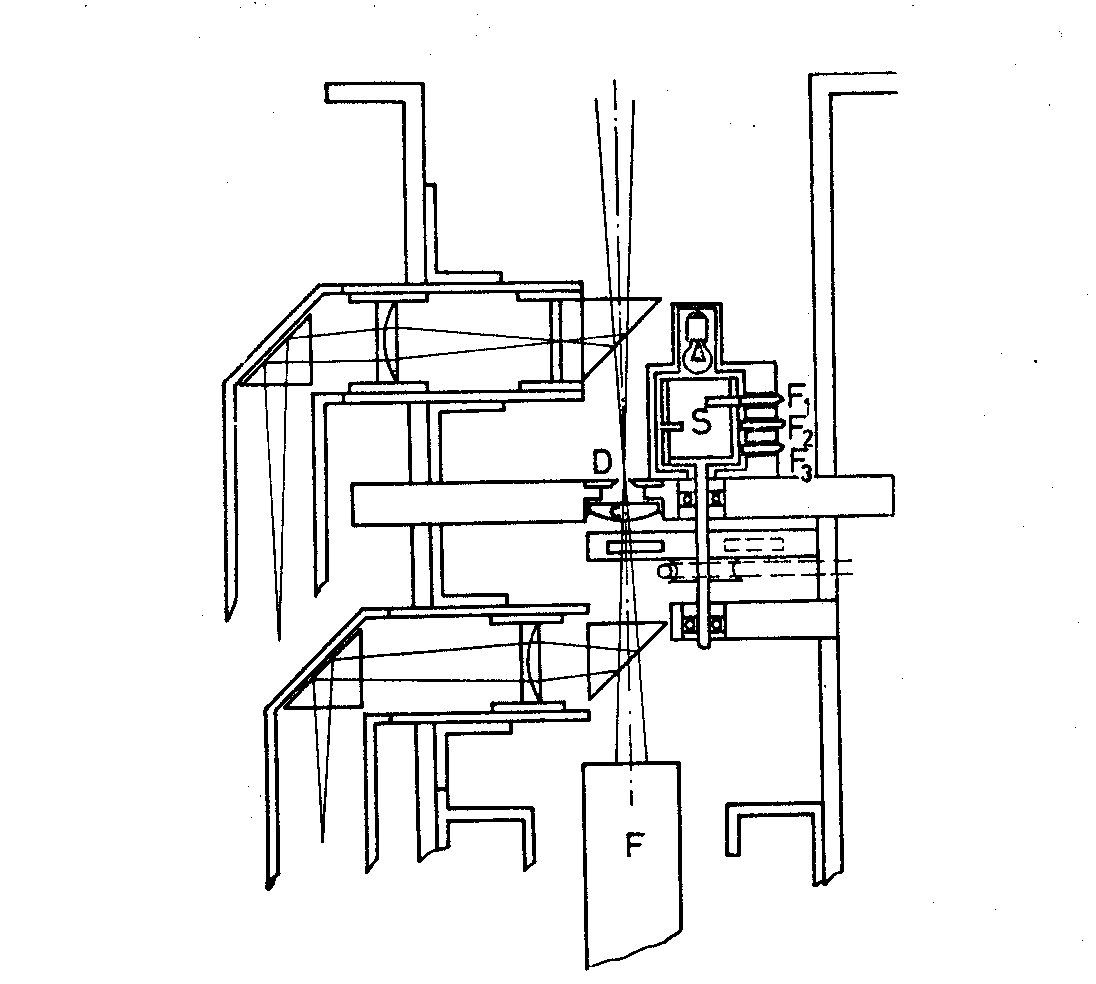

       Fig. 2. Optics of the photometer.

The device (S) consists of a small cylinder mounted on the same shaft as
the filters' carrier-disc. This cylinder is internally lighted and its
inside walls are reflective; besides, it is cut transversely with three
slots 0.7 mm wide and of such a length that each subtends, with respect
to the axis of the cylinder, the same angle at the center as the
corresponding filter in the disc. The light paths that emerge from the
three slots are intercepted, at a fixed position, by three photodiodes
F_1, F_2, F_3, one for each window opening for the entire time that the
corresponding filter passes under the diaphragm opening. The signals
from the photodiodes pilot the gate.


       3. THE ELECTRONICS OF THE PHOTOMETER

The output of the photomultiplier is connected to an impedance matcher
constructed with field effect transistors (Paterno 1967). At the matcher
output, the voltage-pulses are amplified by a D.C. amplifier with
variable gain from 1 to 1000. The amplifier consists of a cascade system
of 5 identical operational amplifiers having strong negative feedback.
The UBV pulses at the amplifier output are selected and led to the
proper channel by means of three photodiodes operated gates. The gates
consist of a mercury relais type Clare HGSM 51111LOO.
All signals relative to each channel are detected and then, via integrator
and differential amplifier, activate the recorder.


       4. CHARACTERISTICS OF THE PHOTOMETER

It must be noted, above all, that the chopping of the radiation does not
change the signal-to-noise ratio, so taking into consideration that the
system of the amplification practically eliminates all the noise of the
electronic apparatus, it is possible to reach, integrating on convenient
time intervals, the same limit magnitude which is reached utilizing all
the incident radiation.
The accuracy of the measurements, as known, is proportional to the total
sum of the available radiation for each measure. Neglecting the radiation
coming from the sky with respect to the signal, the average error (a.e.) of a
measurement is given by the formula:

		 a.e. = +-(1/nqt)^1/2

where n is the number of the photons due to irradiance of the star collected
for a unit of time, q is the effective efficiency of the receiver and t is
the exposure time.
At present the photometer is placed at the f/10 quasi-Cassegrain arrangement
of the universal 61 cm reflector.
Considering a star of 10m, the number of photoelectrons obtained from the
collected photons is about 10^4 sec^-1 (Allen 1963). Therefore, with an
exposure of 1 sec the average error is about + - 0.01m for one measurement;
averaging 10 measurements the error is reduced to + - 0.001m. In our photometer
the exposure time of each measurement in one band is 0.5 sec. However, as it
was noted, the gate circuit is very prompt in action, it seems possible not
only to increase the exposure time up to 1 sec, but even to increase it, gaining
in the efficiency of the photometer which at present utilizes only 25 per cent
of the incident radiation.
We have calculated that the magnitude limit which can be reached with
our photometer, applied to a telescope of 61 cm, is 12.5m; this result
was verified by the observations. At present, the photometer works with
the 61 cm reflector and is used for a research programme on flare stars.
Fig. 3 shows three photograms of oscilloscope tracings. They show the
different responses of the photometer in the UBV for three stars of
spectral types B6, G2 and K5 respectively (from the top to the bottom).
Finally, Fig. 4 shows a flare of the star EV Lacertae, observed with our
apparatus on 8 August 1968 at 23h23m, Universal Time.

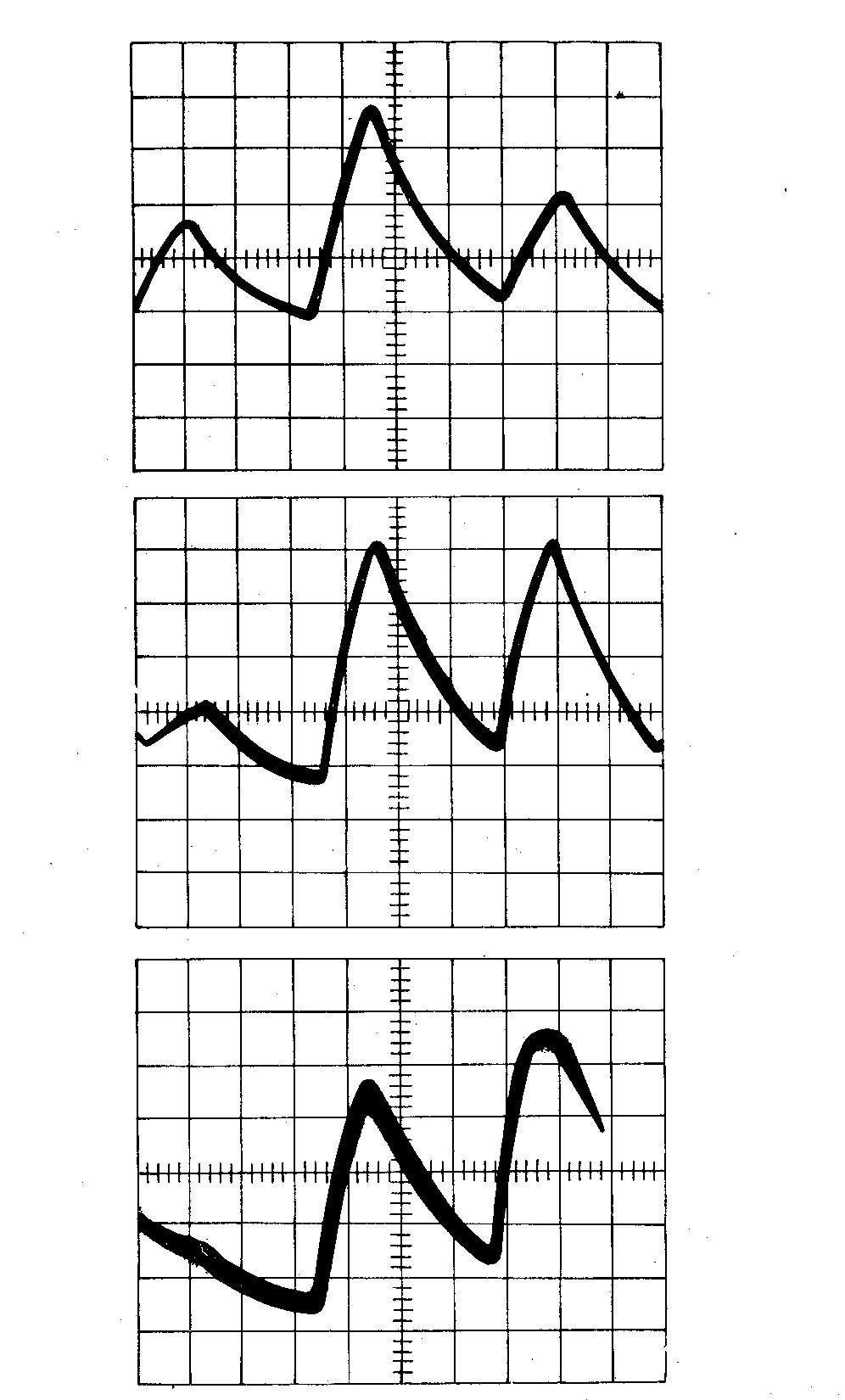

Fig. 3. The response of the photometer for B6, G2 and K5 spectral type stars
	  (from the top to the bottom).

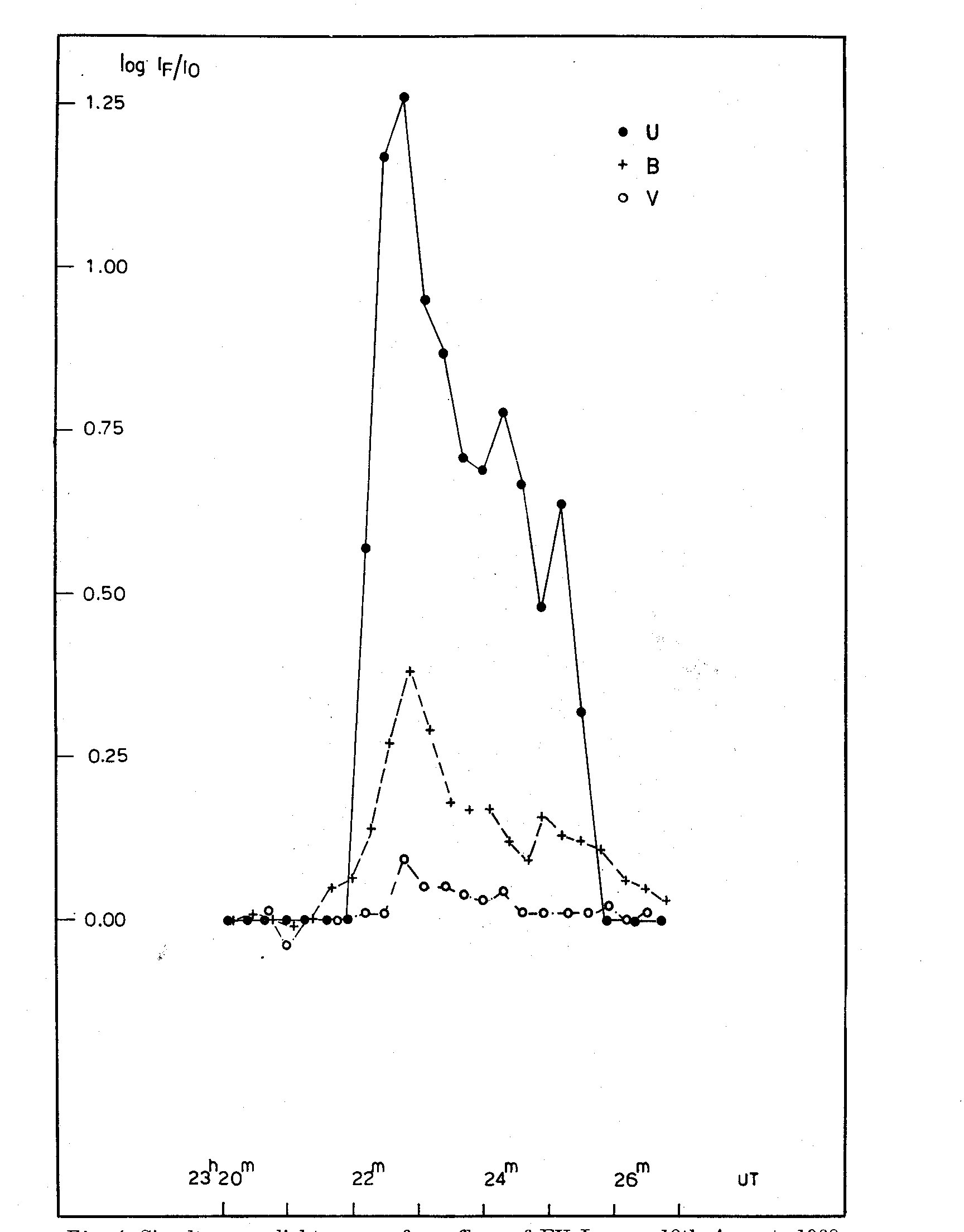

Fig. 4. Simultaneous light curves for a flare of EV Lac on 18th August 1968
		      in the UBV system


		     REFERENCES

Allen, C. M., 1963, Astrophysical Quantities, 2nd edit. Univ. of London,
London. p. 191-192.
Cristaldi, S. and Paterno, L., 1968, Synchronous three colour stellar
photometer (in press) Mem. Soc. astr. Ital., 39.
Paterno, L., 1967, Mem. Soc. astr, Ital., 38, 555.
